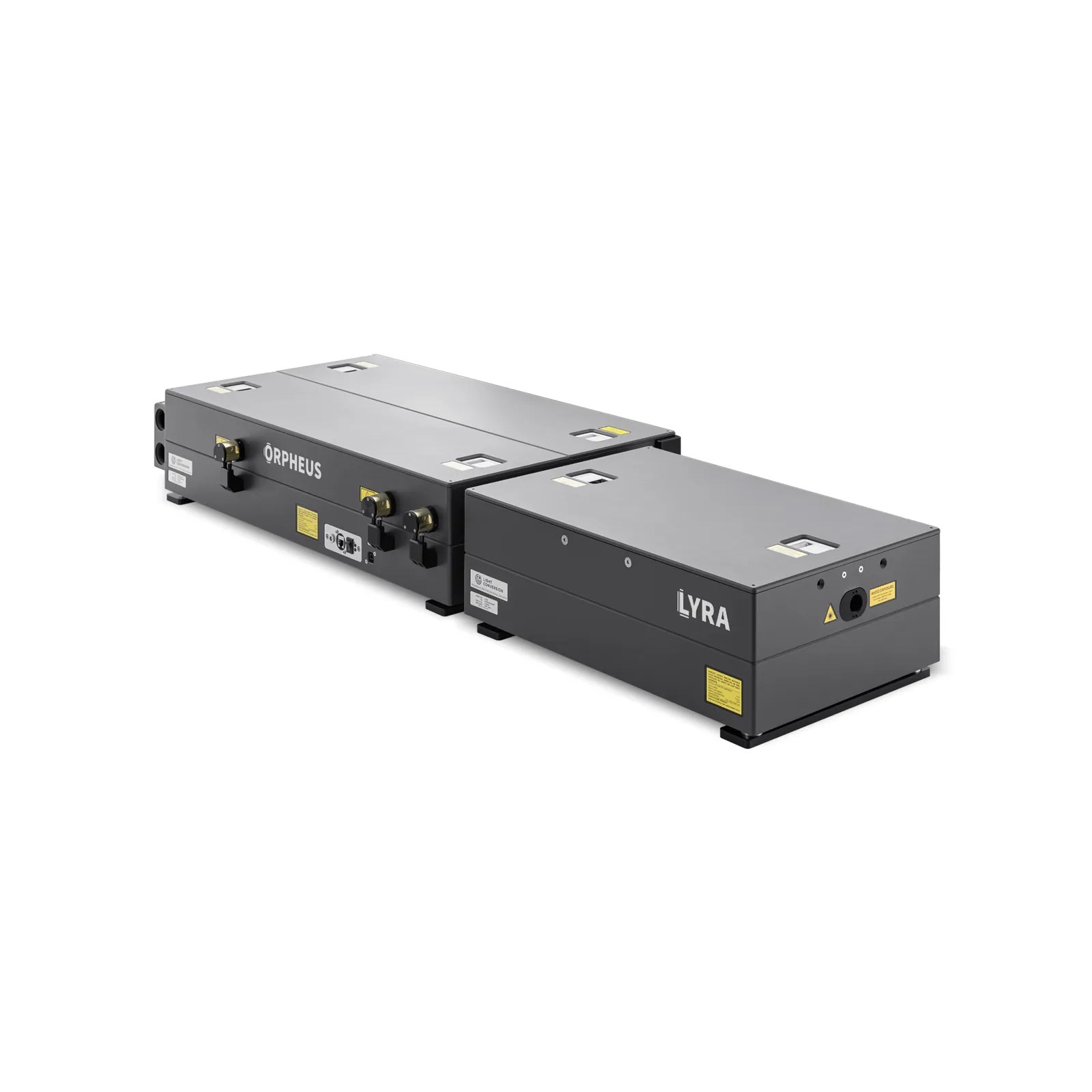

ORPHEUS-VIS
Broad-bandwidth visible optical parametric amplifier
A broad-bandwidth visible OPA that delivers ultrashort VIS pulses for spectroscopy and imaging.
Features
- Broad-bandwidth visible output
- Ultrashort VIS pulses
- Yb-pumped ORPHEUS platform
- Computer-controlled tuning
- Spectroscopy and imaging
Specifications
| Configuration | Standard | Wide tuning range |
|---|---|---|
| Main output | ||
| Tuning range | 450 – 600 nm | 320 – 900 nm |
| Maximum pump power | 20 W | 20 W |
| Pump pulse energy | 200 – 1000 µJ | 200 – 1000 µJ |
| Pulse duration | < 50 fs @ 500 – 600 nm | < 50 fs @ 500 – 600 nm < 55 fs @ 800 – 900 nm < 70 fs @ 650 – 800 nm |
| Conversion efficiency 1) | 1.5 % @ 500 nm | > 1.5% @ 500 nm > 5.0% @ 660 nm > 0.5% @ 350 nm |
| Spectral bandwidth 2) | 200 – 700 cm⁻¹ | 200 – 700 cm⁻¹ |
| Long-term power stability, 8 h 3) | < 2% @ 500 nm | < 2% @ 500 nm |
| Optional extension (UV) | ||
| Tuning range | 250 – 300 nm | 250 – 300 nm |
| Conversion efficiency 1) | > 0.15% @ 280 nm | > 0.15% @ 280 nm |
| Spectral bandwidth 2) | 200 – 600 cm⁻¹ | 200 – 600 cm⁻¹ |
| Pump laser requirements | ||
| Configuration | CARBIDE or PHAROS | CARBIDE or PHAROS |
| Center wavelength | 1030 ± 10 nm | 1030 ± 10 nm |
| Maximum pump power | 20 W | 20 W |
| Repetition rate | Single-shot – 100 kHz | Single-shot – 100 kHz |
| Pump pulse energy | 200 – 1000 μJ | 200 – 1000 μJ |
| Pump pulse duration 4) | 200 – 350 fs | 200 – 350 fs |
| Environmental & utility requirements | ||
| Operating temperature 5) | 19 – 25 ºC (air conditioning recommended) | 19 – 25 ºC (air conditioning recommended) |
| Relative humidity 5) | 20 – 70% (non-condensing) | 20 – 70% (non-condensing) |
| Electrical requirements | 100 – 240 V AC, 1.4 A; 50 – 60 Hz | 100 – 240 V AC, 1.4 A; 50 – 60 Hz |
| Rated power | 120 W | 120 W |
| Power consumption | Standby: 10 W, Max during wavelength tuning: 100 W | Standby: 10 W, Max during wavelength tuning: 100 W |
- Specified as a percentage of pump power.
- Full width at half maximum (FWHM).
- Expressed as normalized root mean squared deviation (NRMSD).
- Full width at half maximum (FWHM), assuming a Gaussian pulse shape.
- Specifications are guaranteed for a maximum temperature variation of ± 1 ºC and humidity variation of ± 10%.
