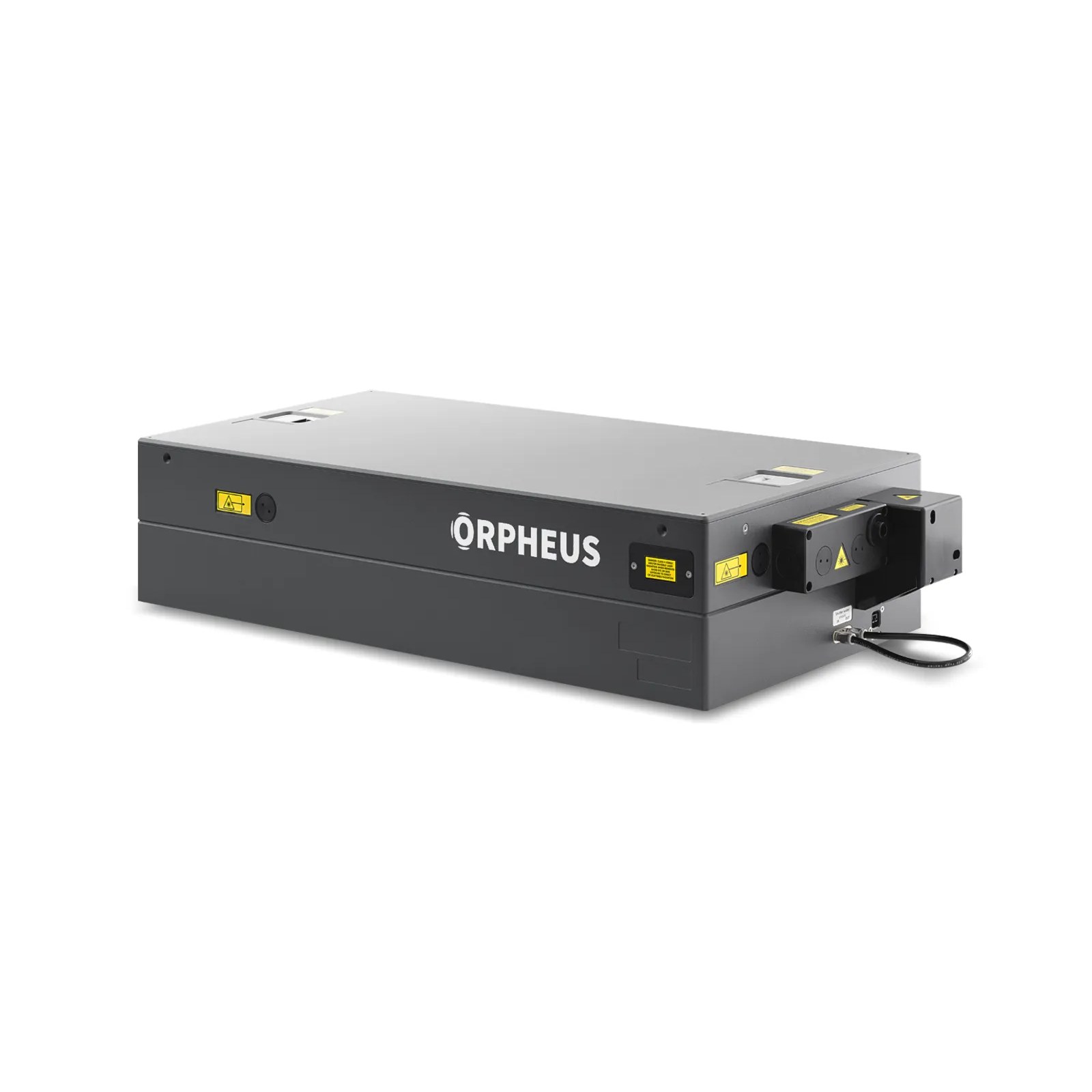

ORPHEUS-N
Non-collinear optical parametric amplifier
A non-collinear OPA for pulses shorter than 50 fs, and below 30 fs in some configurations, when the experiment needs shorter pulses than the pump.
Features
- Non-collinear amplification
- Pulse duration < 50 fs; < 30 fs options
- Shorter than the pump pulse
- Signal-wave output
- Ultrafast spectroscopy and HHG seeding
Specifications
| Model | ORPHEUS‑N‑2H | ORPHEUS‑N‑3H |
|---|---|---|
| Main output | ||
| Tuning range | 650 – 900 nm (Signal) | 520 – 900 nm (Signal) |
| Maximum pump power | 8 W | 8 W |
| Pump pulse energy | 10 – 200 µJ | 12 – 200 µJ |
| Conversion efficiency | > 7% @ 700 nm > 5% @ 800 nm | > 1.3% @ 580 nm > 0.7% @ 700 nm > 0.3% @ 800 nm |
| Integrated 2H / 3H generation efficiency 1) | > 35% (515 nm) | > 25% (343 nm) |
| Pulse duration after the compressor | < 30 fs @ 700 – 850 nm | < 30 fs @ 540 – 660 nm < 70 fs @ 660 – 800 nm |
| Long-term power stability, 8 h 2) | < 2% @ 800 nm | < 2% @ 580 nm |
| Pulse-to-pulse energy stability, 1 min 2) | < 2% @ 800 nm | < 2% @ 580 nm |
| Wavelength extension | ||
| Tuning range (SHS) | 325 – 450 nm | 260 – 450 nm |
| Conversion efficiency | > 0.7 % @ 350 nm | > 0.15 % @ 290 nm |
| Pump laser requirements | ||
| Configuration | CARBIDE or PHAROS | CARBIDE or PHAROS |
| Center wavelength | 1030 ± 10 nm | 1030 ± 10 nm |
| Maximum pump power | 8 W | 8 W |
| Repetition rate | Single-shot – 800 kHz | Single-shot – 600 kHz |
| Pump pulse energy | 10 – 200 μJ | 12 – 200 μJ |
| Pump pulse duration 3) | 180 – 500 fs | 180 – 500 fs |
| Environmental & utility requirements | ||
| Operating temperature 4) | 19 – 25 ºC (air conditioning recommended) | 19 – 25 ºC (air conditioning recommended) |
| Relative humidity 4) | 20 – 70% (non-condensing) | 20 – 70% (non-condensing) |
| Electrical requirements | 100 – 240 V AC, 1.4 A; 50 – 60 Hz | 100 – 240 V AC, 1.4 A; 50 – 60 Hz |
| Rated power | 120 W | 120 W |
| Power consumption | Standby: 10 W, Max during wavelength tuning: 100 W | Standby: 10 W, Max during wavelength tuning: 100 W |
| Purging requirements | Nitrogen purge – optional | Nitrogen purge – required, 1 – 3 liters per minute |
- Not simultaneous to NOPA output.
- Expressed as normalized root mean squared deviation (NRMSD).
- FWHM, assuming a Gaussian pulse shape.
- Specifications are guaranteed for a maximum temperature variation of ± 1 °C and humidity variation of ± 10%.
