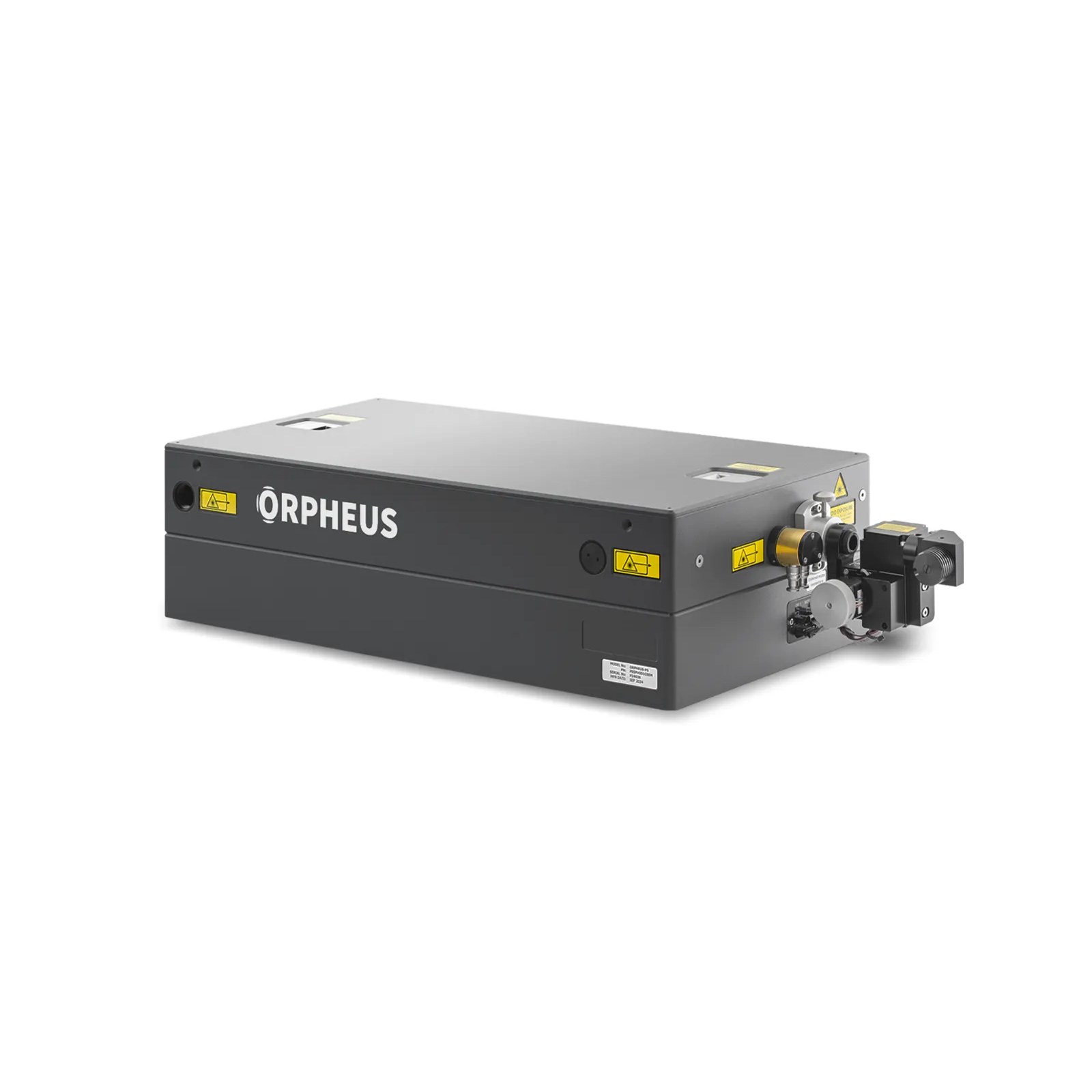

ORPHEUS-PS
Narrow-bandwidth optical parametric amplifier
A narrow-bandwidth OPA with picosecond-class pulses for experiments that need spectral resolution more than the shortest pulse.
Features
- Narrow spectral bandwidth
- Picosecond-class pulses
- Yb-pumped ORPHEUS platform
- Computer-controlled tuning
- Spectrally selective excitation
Specifications
| Model | ORPHEUS-PS |
|---|---|
| Main output | |
| Tuning range 1) | 640 – 1000 nm (Signal) 1060 – 2600 nm (Idler) |
| Conversion efficiency | > 6% @ 700 nm |
| Pulse duration | 800 fs – 3 ps |
| Spectral bandwidth | < 20 cm⁻¹ @ 800 nm |
| Pulse-to-pulse energy stability 2) | < 2% @ 800 nm |
| Auxiliary output 1 (515 nm) | |
| Center wavelength 3) | 515 nm ± 5 nm |
| Generation efficiency 4) | > 15% |
| Auxiliary output 2 (1030 nm) | |
| Center wavelength 5) | 1030 ± 10 nm |
| Pulse duration | < 300 fs |
| Pulse energy | > 5 µJ |
| Wavelength extensions | |
| SHS, SHI | 320 – 500 nm, 530 – 640 nm: > 3% @ 350 nm |
| FHS, FHI | 210 – 250 nm, 265 – 320 nm: > 0.3% @ 230 nm |
| DFG | 2400 – 4800 nm: on request |
| Pump laser requirements | |
| Configuration 6) | CARBIDE or PHAROS with uncompressed output option 7) |
| Center wavelength | 1030 ± 10 nm |
| Maximum pump power | 20 W |
| Repetition rate | Single-shot – 100 kHz |
| Pump pulse energy | 100 μJ – 3.2 mJ |
| Environmental & Utility requirements | |
| Operating temperature 8) | 19 – 25 ºC (air conditioning recommended) |
| Relative humidity 8) | 20 – 70% (non-condensing) |
| Electrical requirements | 100 – 240 V AC, 1.4 A; 50 – 60 Hz |
| Rated power | 120 W |
| Power consumption | Standby: 10 W, Max during wavelength tuning: 100 W |
- For a single wavelength (515 nm) picosecond output, refer to SHBC.
- Expressed as normalized root mean squared deviation (NRMSD).
- Direct SHBC output, not simultaneous to OPA; see more details in SHBC specifications.
- Specified as a percentage of pump pulse energy.
- Compressed pump output.
- The pump laser is first paired with the SHBC module, then the SHBC output is used to pump the OPA. The parameter requirements are for the pump laser.
- Not compatible with PHAROS-UP.
- Specifications are guaranteed for a maximum temperature variation of ± 1 o C and humidity variation of ± 10%.
