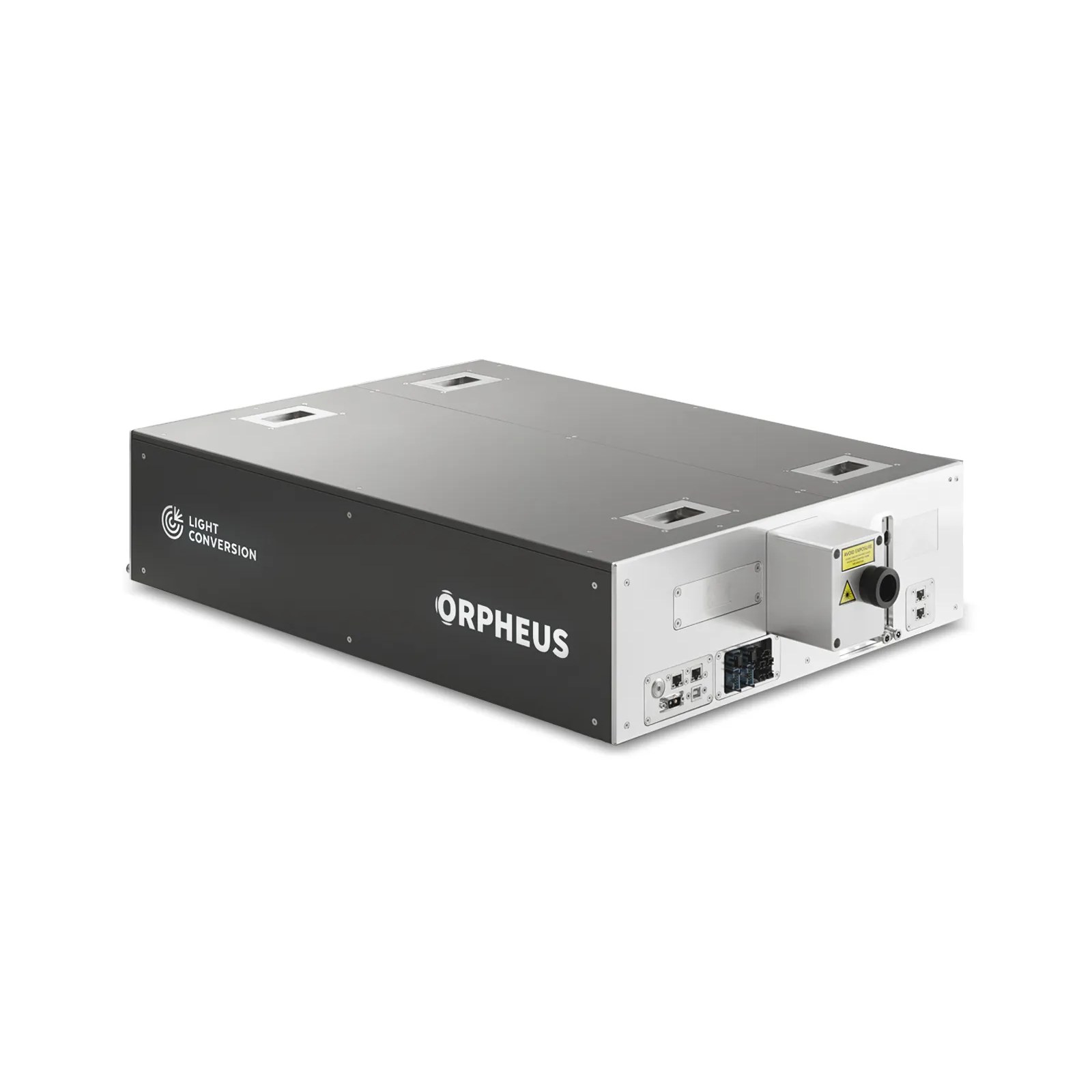

ORPHEUS-OPCPA
Tabletop OPCPA system
A compact tabletop OPCPA that delivers few-cycle, CEP-stable pulses above 1 mJ and 100 GW peak power at rates up to 1 MHz.
Features
- Few-cycle, CEP-stable pulses
- > 1 mJ and > 100 GW
- Repetition rate up to 1 MHz
- Pulse duration < 6 fs
- Compact tabletop footprint
Specifications
| Center wavelength 1) | 800 nm | 1050 nm | 1600 nm | 2000 nm |
|---|---|---|---|---|
| Pump source | CARBIDE / PHAROS | CARBIDE / PHAROS | CARBIDE / PHAROS | CARBIDE / PHAROS |
| Pump power | 20 – 480 W | 20 – 480 W | 20 – 480 W | 20 – 480 W |
| Pump pulse energy | 0.2 – 20 mJ | 0.2 – 20 mJ | 0.2 – 20 mJ | 0.2 – 20 mJ |
| Repetition rate | 1 kHz – 1 MHz | 1 kHz – 1 MHz | 1 kHz – 1 MHz | 1 kHz – 1 MHz |
| Conversion efficiency 2) | > 7% | > 6% | > 10% | > 9% |
| Pulse duration 2) 3) | < 10 fs / < 15 fs | < 40 fs / < 300 fs | < 40 fs | < 25 fs |
| CEP stability, 1 h 2) 4) | < 250 mrad | < 250 mrad | < 250 mrad | < 250 mrad |
| Temporal contrast | ≥ 10 10 : 1, from −500 to −50 ps ≥ 10 9 : 1, from −50 to −15 ps ≥ 10 6 : 1, from −15 to −5 ps | ≥ 10 10 : 1, from −500 to −50 ps ≥ 10 9 : 1, from −50 to −15 ps ≥ 10 6 : 1, from −15 to −5 ps | n/a 4) | n/a 4) |
| Long-term power stability, 8 h 2) 6) | < 1.5% | < 1.5% | < 1.5% | < 1.5% |
| Pulse-to-pulse energy stability, 1 min 2) 6) | < 1% | < 1% | < 1% | < 1% |
- Typical wavelengths, other wavelengths are available. For custom inquiries, on request.
- Typical values. For custom inquiries, on request.
- Uncompressed pulses are available for seeding larger amplifiers.
- CEP values calculated from unaveraged, single-shot measurements.
- Although the pulse contrast is not quantified, the identical OPA architecture is already validated at 800 nm and 1050 nm.
- Expressed as normalized root mean squared deviation (NRMSD).
