OPCPA-HE

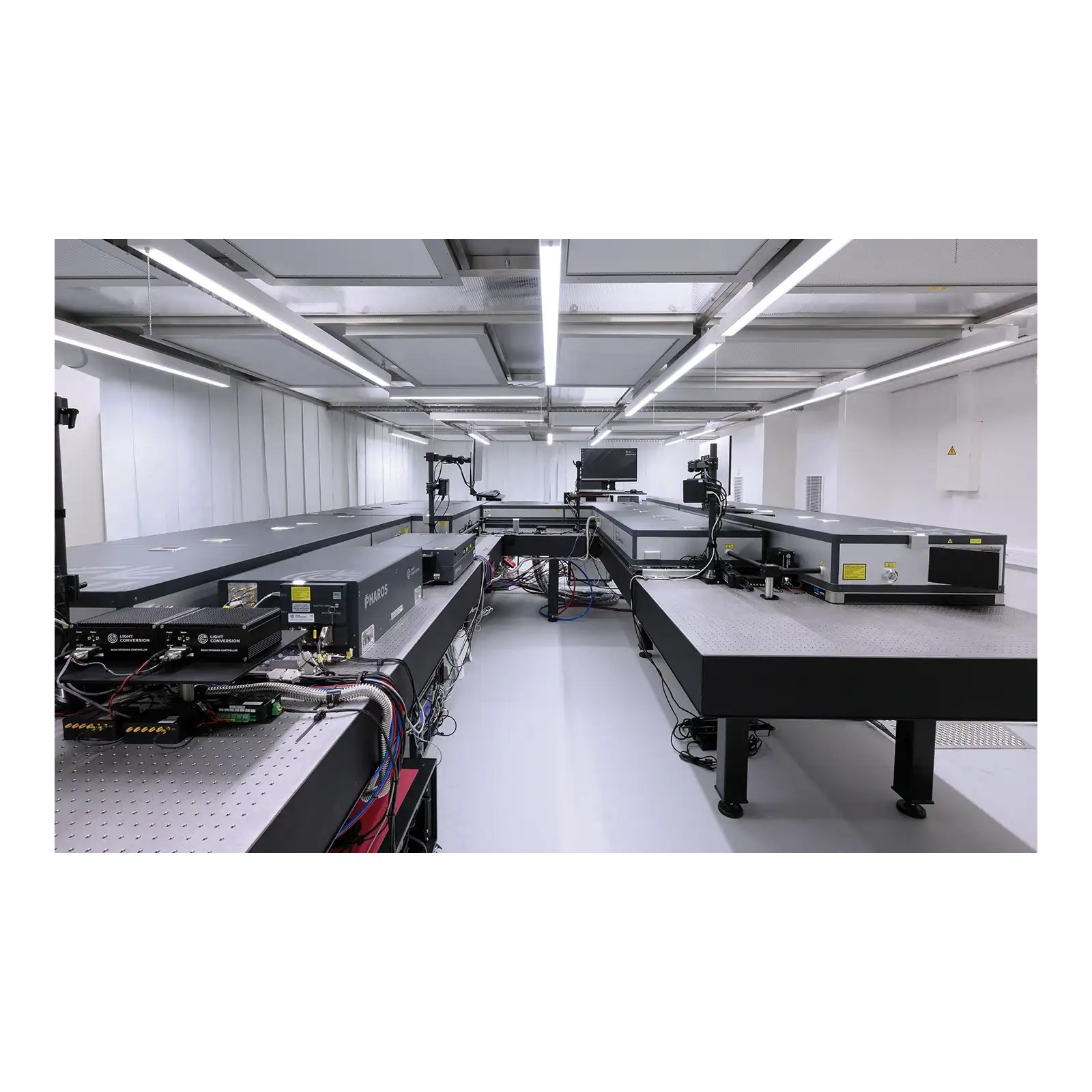

High-energy OPCPA system
A multi-TW OPCPA for extreme-light work: more than 250 mJ, pulse durations below 9 fs, and peak power above 25 TW at 1 kHz.
Features
- > 250 mJ pulse energy
- Peak power > 25 TW
- Pulse duration < 9 fs
- 1 kHz repetition rate
- CEP stability < 250 mrad
Specifications
| Center wavelength | 800 nm | 1600 nm | 2000 nm |
|---|---|---|---|
| Pump source | Picosecond Nd:YAG lasers, seeded by ORPHEUS-OPCPA | Picosecond Nd:YAG lasers, seeded by ORPHEUS-OPCPA | Picosecond Nd:YAG lasers, seeded by ORPHEUS-OPCPA |
| Repetition rate | 10 Hz – 1 kHz | 10 Hz – 1 kHz | 10 Hz – 1 kHz |
| Maximum output pulse energy 1) | 250 mJ | 100 mJ | 50 mJ |
| Pulse duration 1) | < 9 fs | < 50 fs | < 30 fs |
| CEP stability, 1 h 1) 2) | < 250 mrad | < 250 mrad | < 250 mrad |
| Long-term power stability, 8 h 1) 3) | < 1.5% | < 1.5% | < 1.5% |
| Pulse-to-pulse energy stability, 1 min 1) 3) | < 1.5% | < 1.5% | < 1.5% |
- Typical values. For custom inquiries, on request.
- CEP values calculated from unaveraged, single-shot measurements.
- Expressed as normalized root mean squared deviation (NRMSD).
