LH-1808
Fully automatic liquid handler
A 30-position fully automatic liquid handler for tube-to-plate and plate-to-plate work, including primary-tube loading through qPCR setup. Interchangeable 1- to 32-channel heads cover 0.5–1000 μL.
Features
- 30 deck positions for primary-tube loading, extraction, and qPCR setup in one layout
- Automatic head change: 1, 4, 8, 16, or 32 channels
- Barcode scan and liquid-level detection in one pass; <2.3 s per tube
- Optional lift deck keeps tube liquid levels aligned for parallel aspiration
- 1 μL CV ≤ 5%; XYZ positioning to 0.1 mm
Introduction
LH-1808 is a fully automatic liquid handler for primary-tube loading and tube-to-plate or plate-to-plate work. Interchangeable 1- to 32-channel heads cover 0.5–1000 μL, including the steps through qPCR setup. Optional modules include barcode, liquid-level detection, thermal control, shaking, blood separation, and magnetic separation.

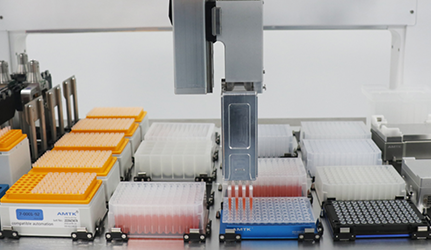

Deck
Thirty positions support a 4×24 tube rack plus 25 plates for primary-tube loading, extraction, and qPCR setup in one layout, or a full 30-plate deck for high-throughput transfer, screening, or NGS library construction.

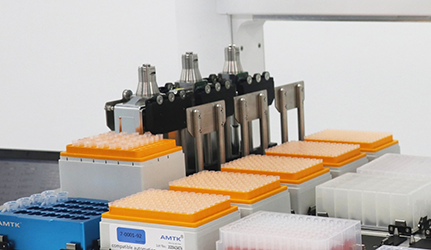

Automatic head change
Heads use air-displacement pumps. Barrels are a hard, light alloy with a wear coating and can be swapped in the field. Matched tips are QC-checked for seal, residual volume, and leaks.

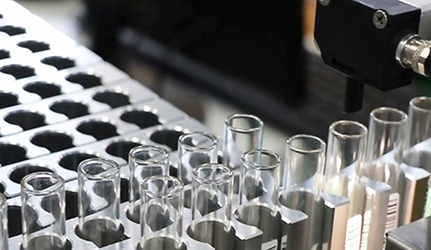

Barcode and liquid-level detection
Barcode reading and liquid-level detection run in the same pass. The scanner accepts 1D and 2D codes; the software logs results in parallel to cut time and transcription error.

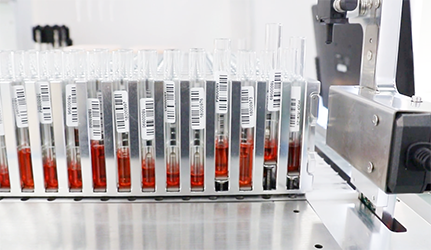

Lift module
A lift deck raises tubes so liquid surfaces sit on one plane for parallel aspiration and fewer missed or short pulls.

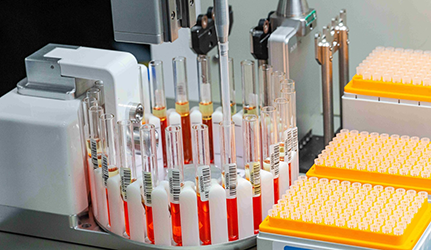

Blood-separation carousel
The carousel reads 1D and 2D barcodes, logs sample IDs, and can export a spreadsheet. It finds the buffy coat, separates serum, and loads primary collection tubes with heads matched to the volume.

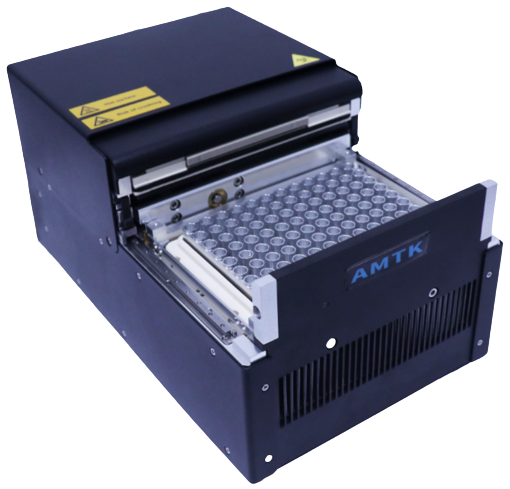

PCR module
The PCR module covers repeated heat and cool steps and limits evaporation, including NGS library construction, Sanger sequencing, enzyme reactions, and hybridization.

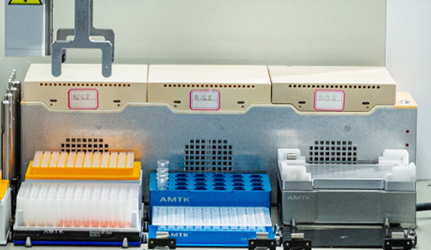

Triple temperature-control module
A triple closed-chamber thermal block holds ambient, 6 °C to room temperature, and room temperature to 110 °C. Use it for cold enzyme storage, volatile or light-sensitive reagents, and incubations in an automated method.

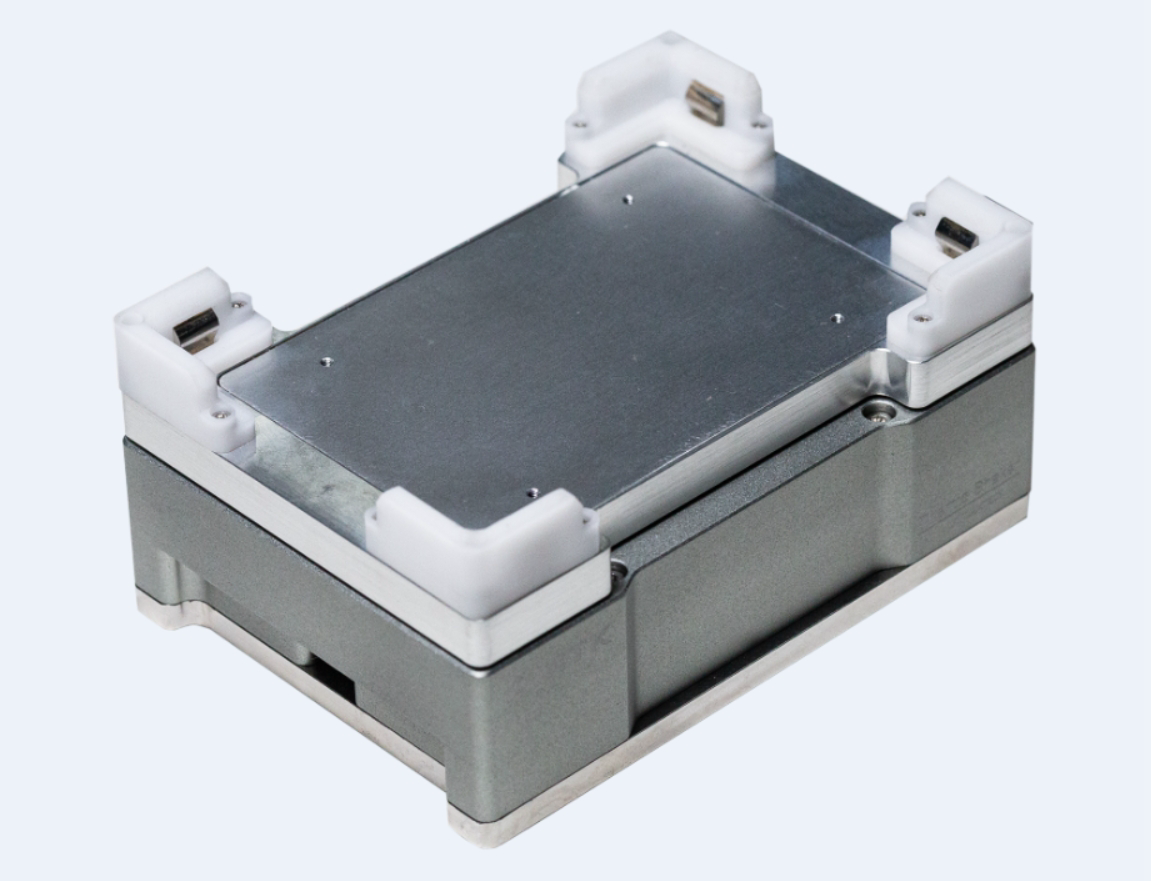

Heating and shaking module
Heating and shaking are combined in one module, so both can run at the same time without taking a second deck position.

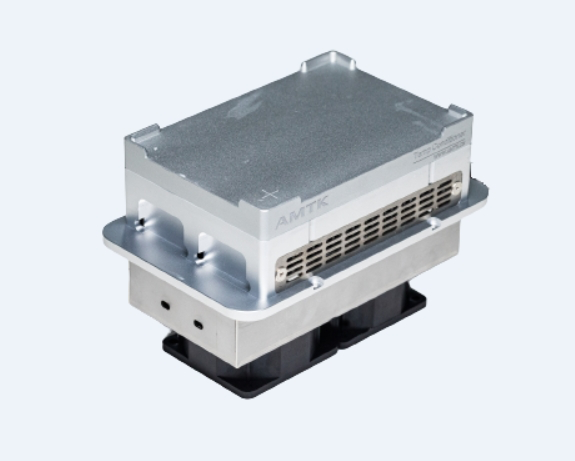

Temperature-control module
The thermal module covers 4–95 °C for lysis, bead elution, and cold hold of enzyme reagents. An aluminum adapter speeds ramps and reduces well-to-well temperature error.
Magnetic-separation module
Ring or column magnetic racks for 96-well plates make bead capture and elution fast. Methods are tuned for large-volume capture and small-volume elution.
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 110 cm × 80 cm × 90 cm |
| Weight | about 150 kg |
| Deck positions | 30 |
| Power | AC 220 V, 50 Hz, 450 W / 525 W |
| Scan time per tube | < 2.3 s |
| Liquid-level detection error | < ±0.5 mm |
| Pipetting | |
| Channels | 1, 4, 8, 16, or 32 |
| Pipetting range | 0.5 μL–1000 μL |
| Compatible tips | 50 μL, 250 μL, 1000 μL |
| Temperature control | |
| Temperature range | 4–95 °C |
| Shaking speed | 100–2000 rpm |
| Heating and shaking module | |
| Temperature and shaking range | room temperature to 100 °C, 200–2000 rpm |
| Triple temperature-control module | |
| Heating box | upper plate: room temperature to 110 °C (±1 °C); lower plate: room temperature to 70 °C (±1 °C) |
| Cooling box | lower plate: 6 °C to room temperature (±4 °C) |
| Ambient box | room temperature |
| Compatible consumables | deep-well plates; 96- and 384-well PCR plates |
| Blood-separation carousel | |
| Compatible collection-tube volume | 5 mL, 10 mL |
| Samples per batch | 24 |
| Barcode scanning | 1D and 2D barcodes |
| PCR module | |
| Temperature range | 4–99 °C |
| Lid temperature | 30–115 °C |
| Temperature uniformity | ±0.2 K |
| Compatible consumables | 96-well PCR plate |
| Pipetting precision | |
| 70 μL head | 1 μL CV ≤ 5.0%; 5 μL CV ≤ 3.0%; 25 μL CV ≤ 2.0%; 50 μL CV ≤ 1.0% |
| Pipetting accuracy | |
| 70 μL head | 1 μL ± 10%; 5 μL ± 6.0%; 25 μL ± 4.0%; 50 μL ± 2.0% |
| Pipetting precision | |
| 250 μL head | 2 μL CV ≤ 5.0%; 100 μL CV ≤ 1.0%; 200 μL CV ≤ 1.0% |
| Pipetting accuracy | |
| 250 μL head | 2 μL ± 5.0%; 100 μL ± 1.5%; 200 μL ± 1.0% |
| Pipetting precision | |
| 1000 μL head | 100 μL CV ≤ 0.5%; 500 μL CV ≤ 0.3%; 900 μL CV ≤ 0.3% |
| Pipetting accuracy | |
| 1000 μL head | 100 μL ± 1.5%; 500 μL ± 1.0%; 900 μL ± 1.0% |
