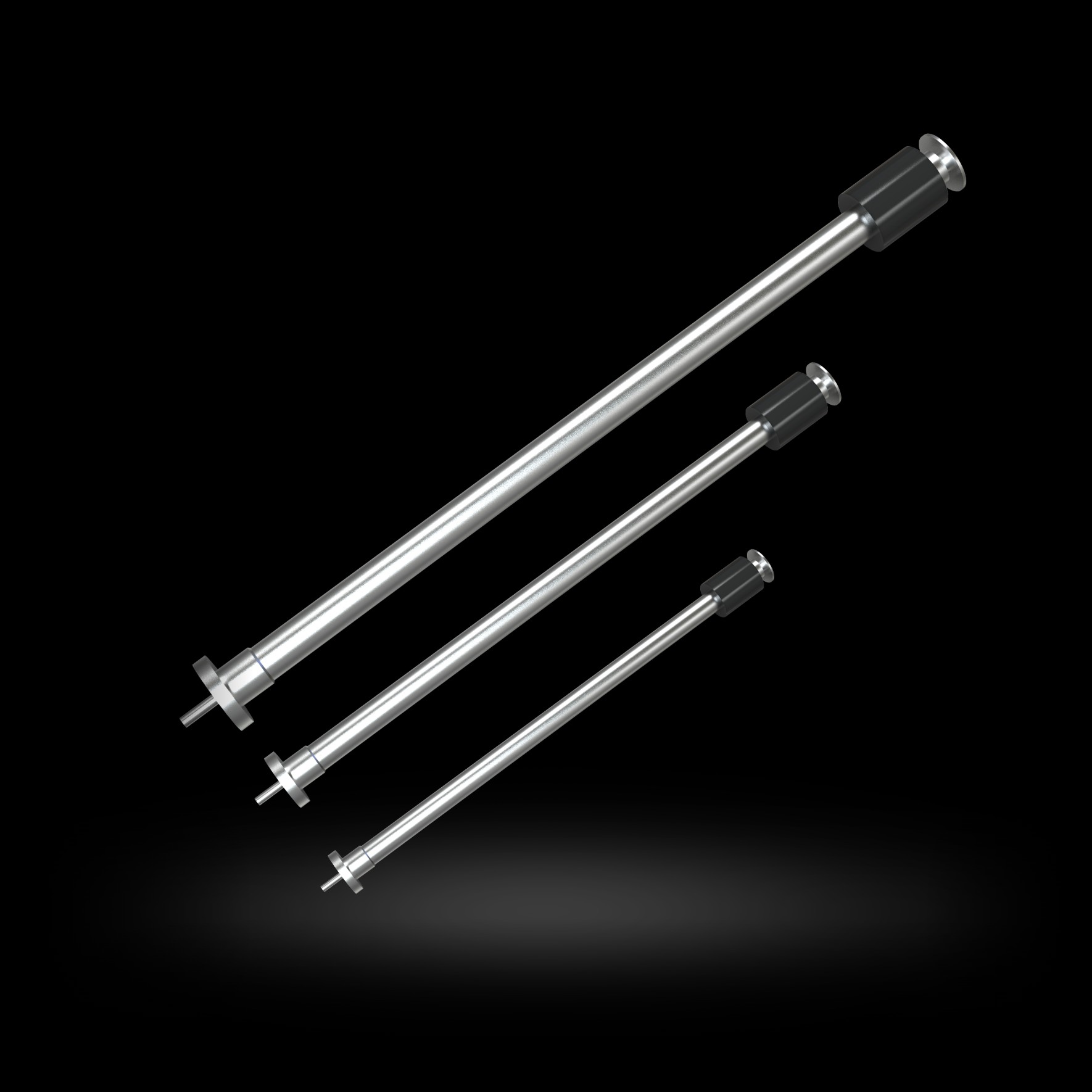

Magnetically coupled transfer rod
A magnetically coupled transfer rod for grasping and translating samples in vacuum. The magnet remains installed during a 150 °C bake-out. Gravity compensation and a rotation lock are optional.

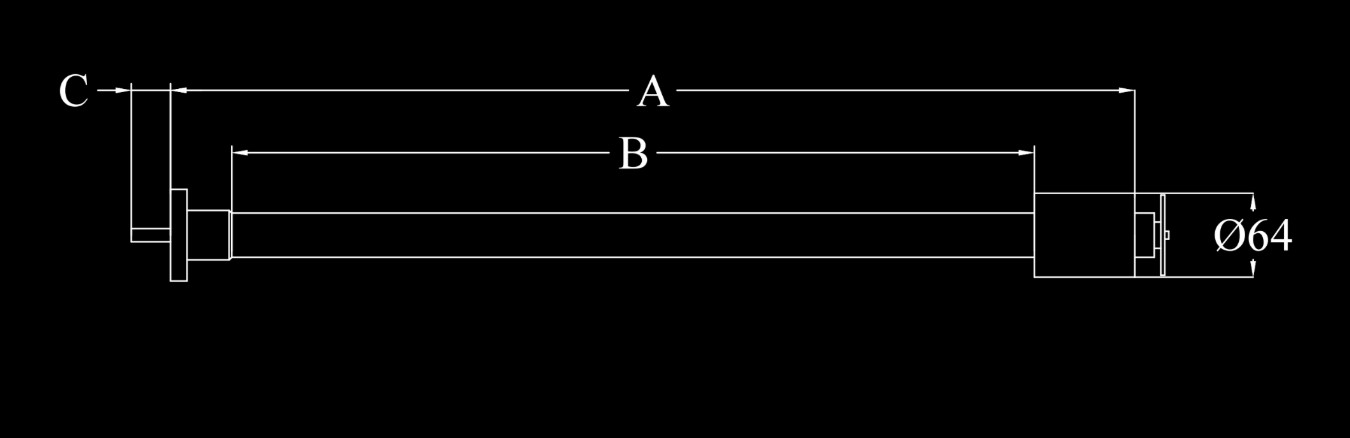

Specifications
| Parameter | Value |
|---|---|
| DN16CF | |
| A | 240 mm / 340 mm / 440 mm |
| B | 100 mm / 200 mm / 300 mm |
| C | Stroke and head size on request |
| DN40CF | |
| A | 360 mm / 660 mm / 1160 mm |
| B | 200 mm / 500 mm / 1000 mm |
| C | Stroke and head size on request |
| DN63CF | |
| A | 710 mm / 960 mm / 1210 mm |
| B | 500 mm / 750 mm / 1000 mm |
| C | Stroke and head size on request |
- Linear and rotary motion through the wall
- Bakeable without removing the magnet
- Stroke and head geometry are custom
