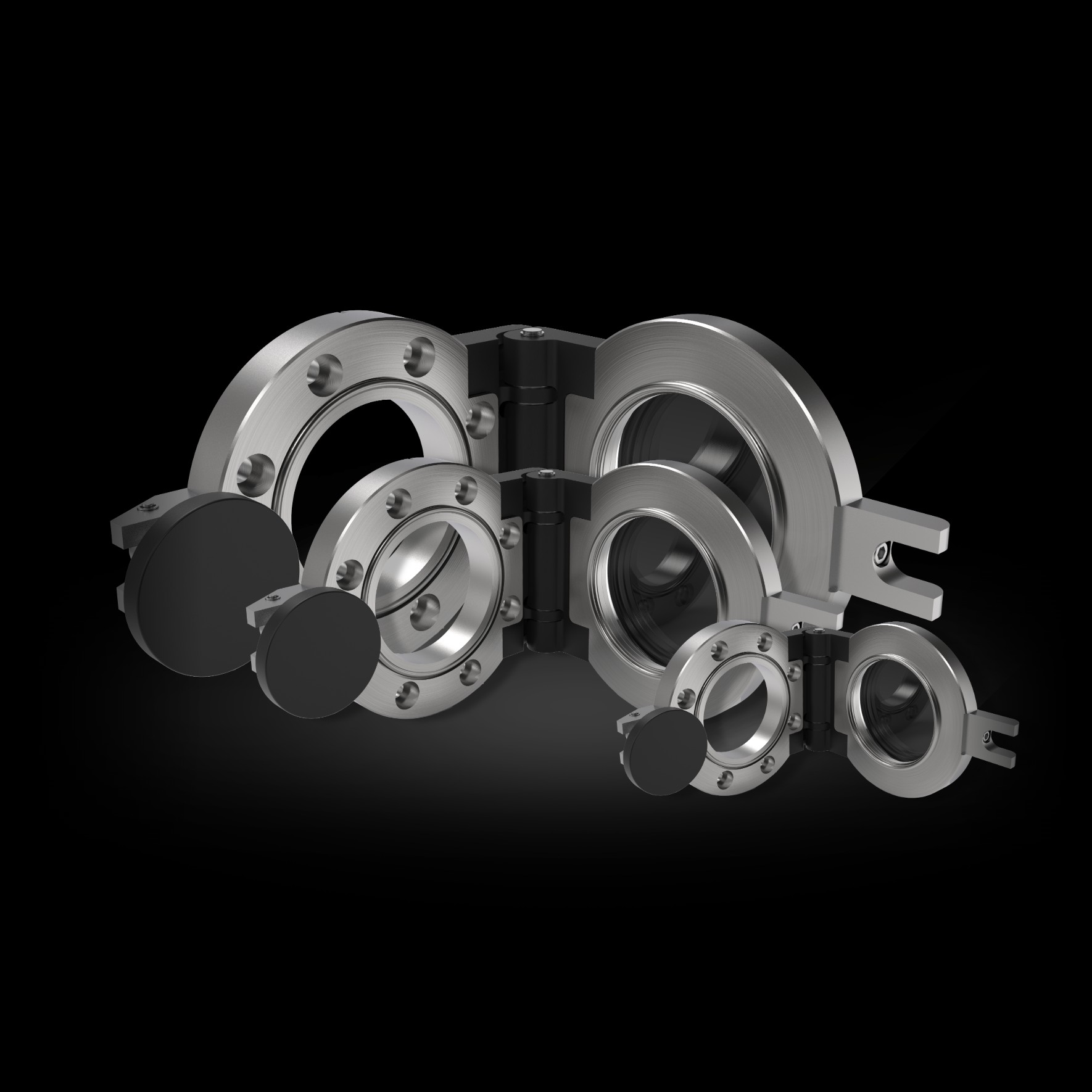

Fast load-lock door
A quick-access door for loading samples. One side uses a reusable elastomer seal with a threaded knob; the other is a CF knife-edge for the chamber. A viewport is standard.
Specifications
| Parameter | Value |
|---|---|
| DN63CF | |
| A | 54 mm |
| B | 35 mm |
| C | 157 mm |
| D | 78 mm |
| E | 62 mm |
| DN100CF | |
| A | 59 mm |
| B | 42 mm |
| C | 198 mm |
| D | 100 mm |
| E | 96 mm |
| DN150CF | |
| A | 59 mm |
| B | 45 mm |
| C | 253 mm |
| D | 122 mm |
| E | 146 mm |
- Elastomer side opens without breaking the copper seal
- Fits standard CF ports
- Viewport optional to omit
