KT-SM-A4

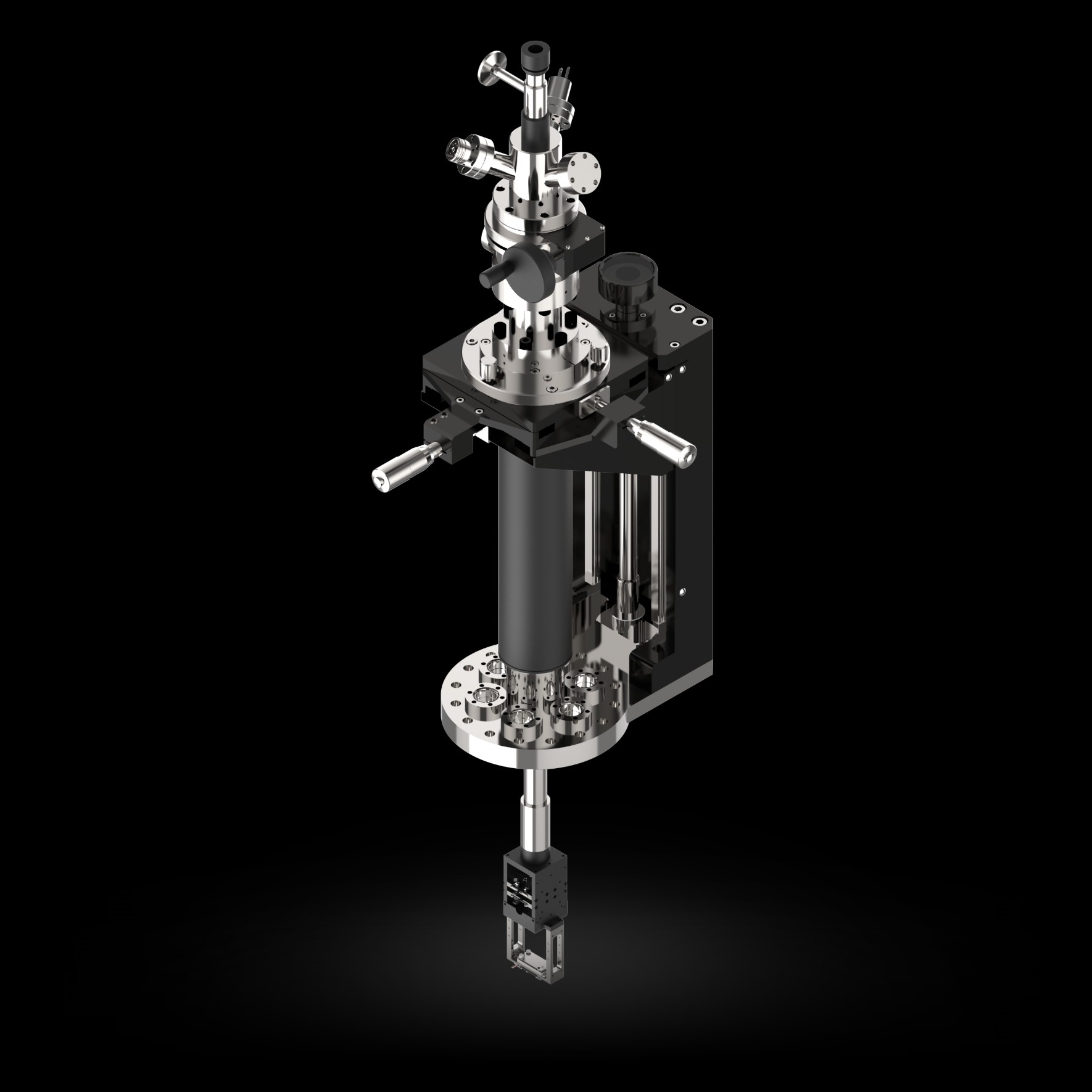

High/low-temperature sample manipulator
An XYZ + rotation manipulator for millimeter-scale MBE. Direct heating reaches 1400 °C; indirect heating reaches 600 °C. Liquid-nitrogen cooling takes the sample to about 100 K.
Features
- Flag-style sample holder; other geometries on request
- LN2 cooling for low-temperature growth
- Optional in-situ cleave and sample storage
- Custom cold-finger length
Specifications
| Parameter | Value |
|---|---|
| Mounting flange | DN100CF |
| Heater | Encapsulated PBN |
| Maximum temperature | 1400 °C direct / 600 °C indirect |
| Sample cooling | 100 K (LN2) |
| Z rotation | 360° continuous |
| Rotation stability | ±0.1 °C |
| X/Y travel | ±12.5 mm |
| Z travel | 0–150 mm |
| Bake temperature | 150 °C |
