Sample manipulators
KT-SM-A2

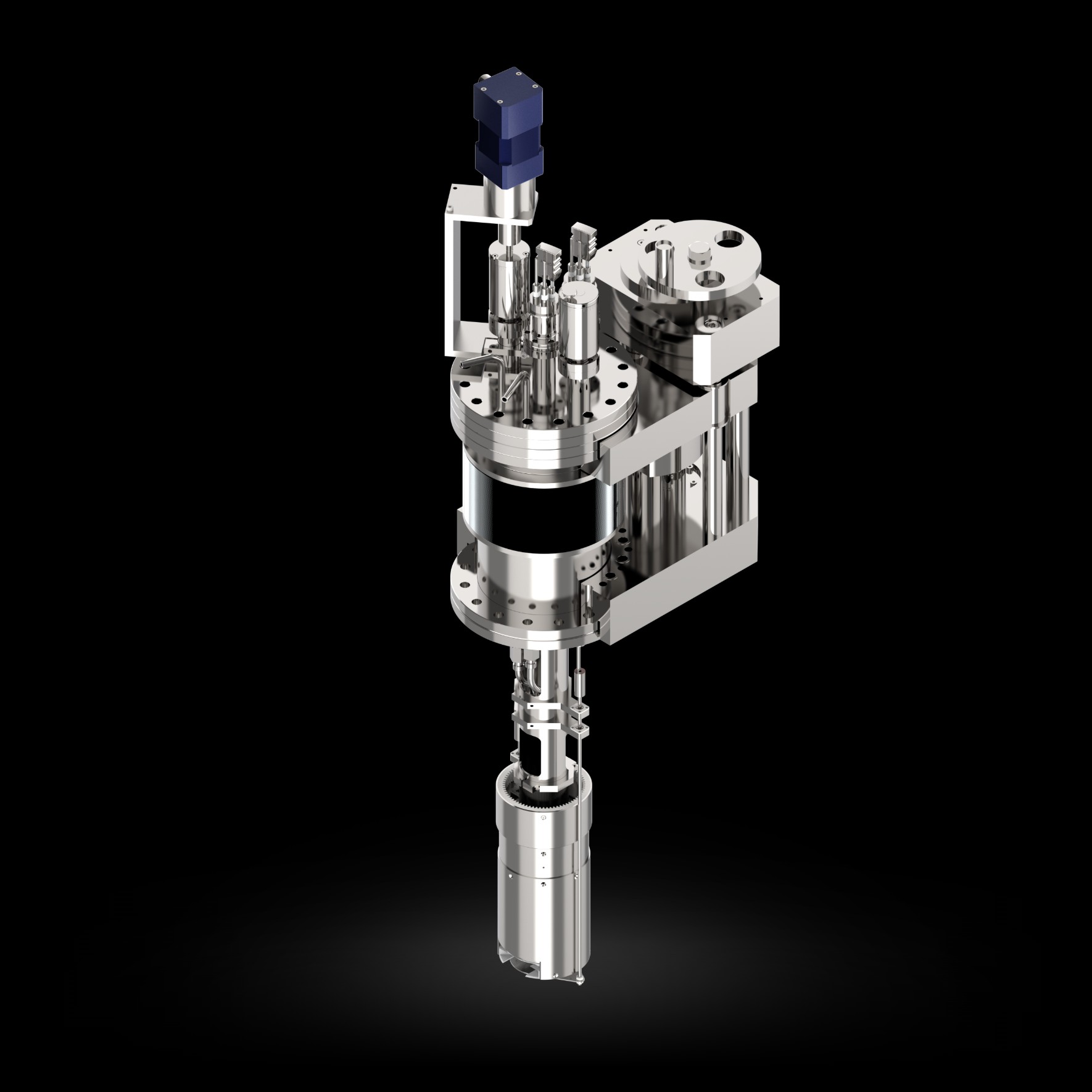

Rotatable sample manipulator
A compact UHV manipulator for wafer-scale MBE. It moves in Z and rotates continuously about Z, with a tungsten heater rated to 1350 °C and PID control to ±0.1 °C.
Features
- Samples up to 2 inches
- Motorized rotation, 0–30 RPM
- Precision ball bearings
- Motorized high-temperature shutter
Specifications
| Parameter | Value |
|---|---|
| Mounting flange | DN150CF |
| Heater | Tungsten filament |
| Maximum heater temperature | 1350 °C |
| Temperature stability | ±0.1 °C |
| Cooling | Water |
| Z rotation | 360° continuous |
| Rotation stability | ±0.1 °C |
| Z travel | 25 mm (other strokes on request) |
| Bake temperature | 150 °C |
