Sample transfer
KT-SC-80

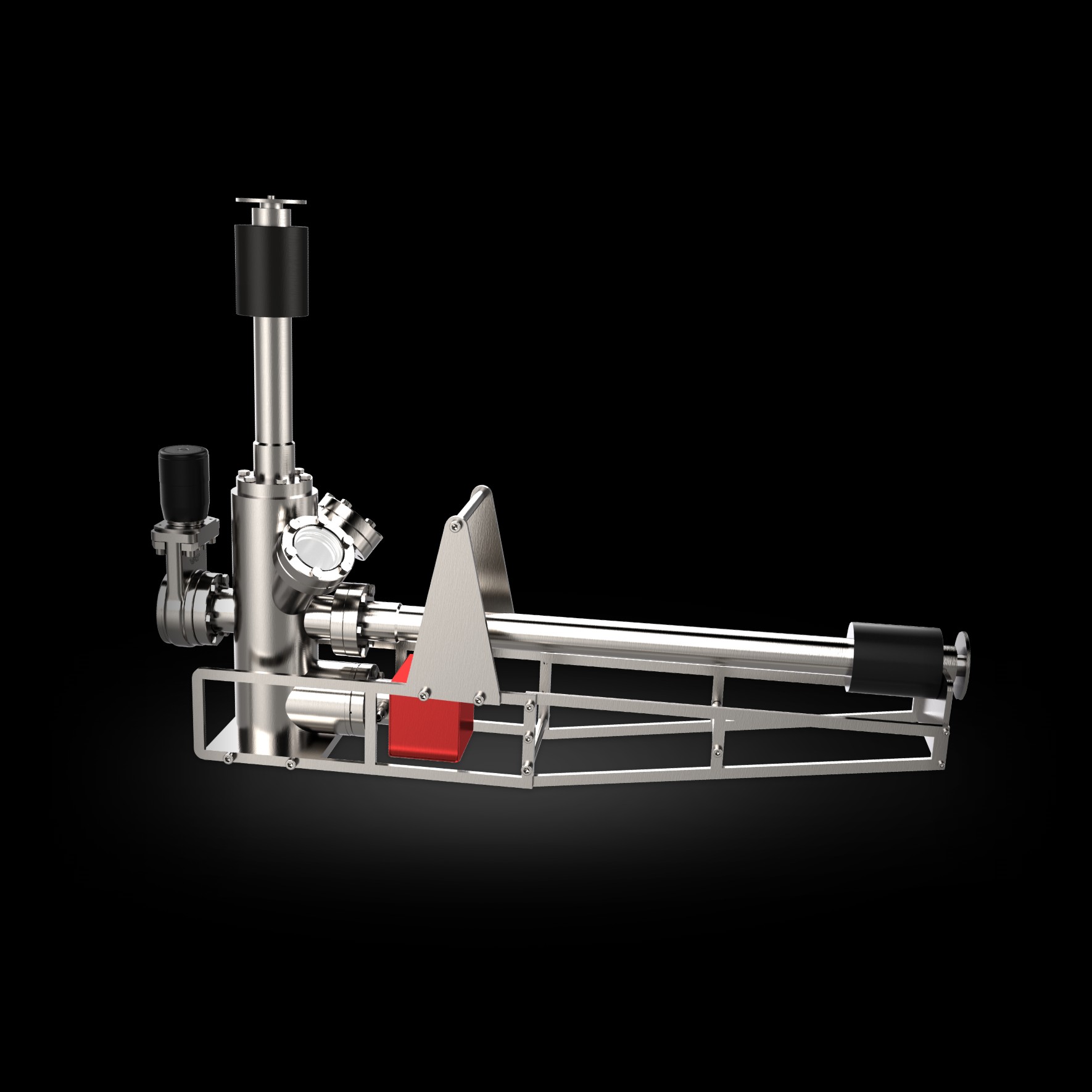

UHV suitcase
A portable UHV suitcase for transferring samples between chambers. A combined ion/getter pump maintains vacuum during mains failure so the sample remains protected in transit.
Features
- UHV suitcase with a DN40CF dock
- Maintains vacuum during mains failure
- Bakeable stainless chamber
Specifications
| Parameter | Value |
|---|---|
| Main chamber | |
| Material | SS304 / SS316 |
| Base pressure | < 2×10⁻¹⁰ mbar |
| Pump | SAES NEXTorr Z 100 |
| Bake temperature | 150 °C |
| Docking flange | DN40CF |
