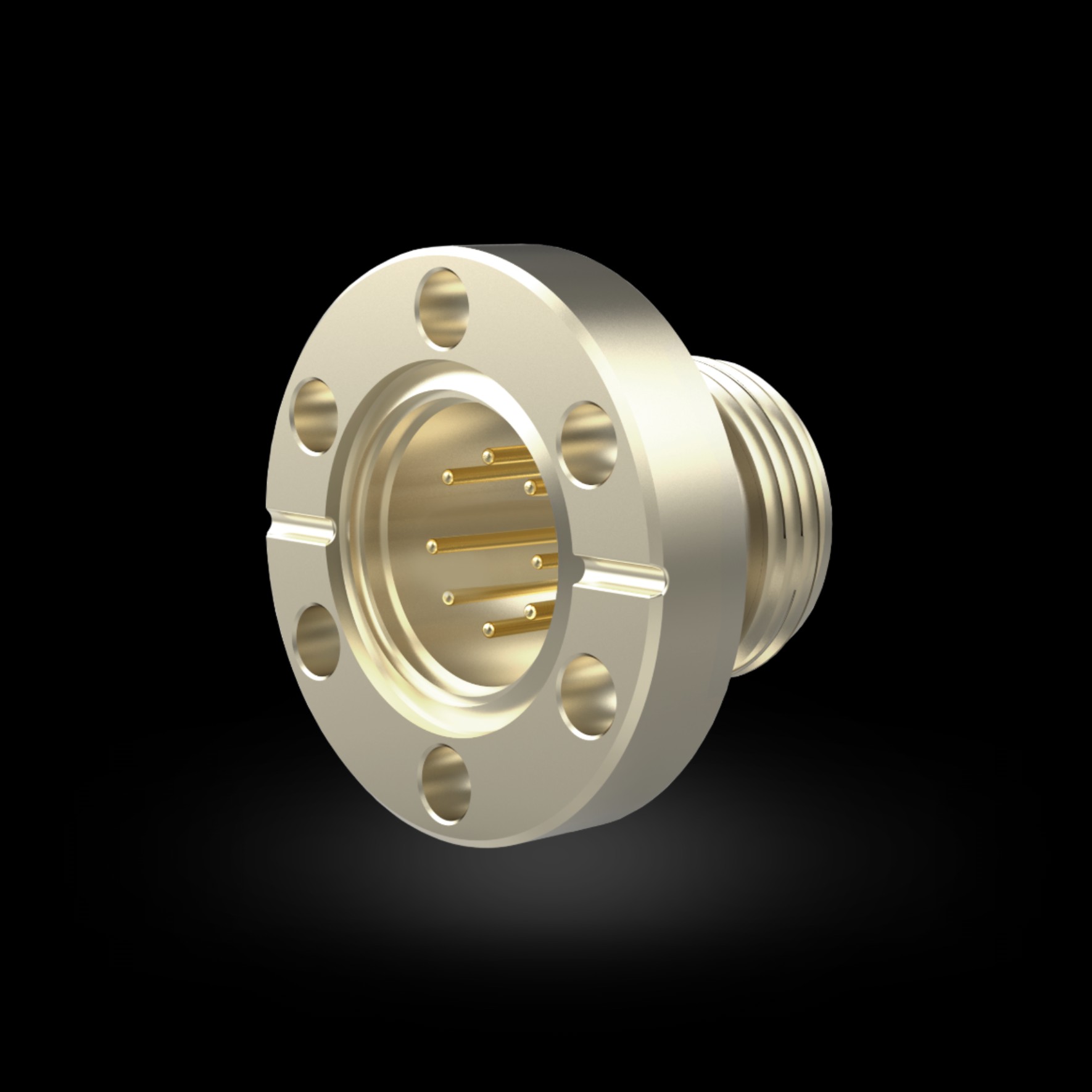

Electrical feedthrough
CF electrical feedthroughs for signals between atmosphere and vacuum. Copper, stainless-steel, and thermocouple pins are available in several pin counts.
Specifications
| Parameter | Value |
|---|---|
| Mounting flange | DN16CF / DN40CF |
| Material | SS304 |
| Bake temperature | 150 °C |
| Pin count | 6–60 |
| Pin diameter | 1.0–1.6 mm |
| Leak rate | < 1×10⁻¹¹ mbar·L/s |
- DN16CF or DN40CF
- 6–60 pins
- UHV leak rate
